Single Coils

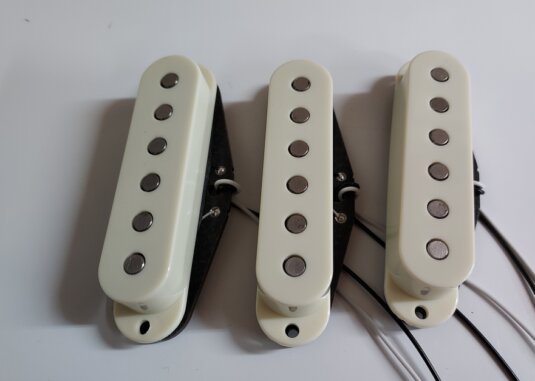

S style pickups available with a variety of windings, magnets
and pole spacing.
These can be supplied with steel base plated to add a little more
bottom end and a very slight volume lift.

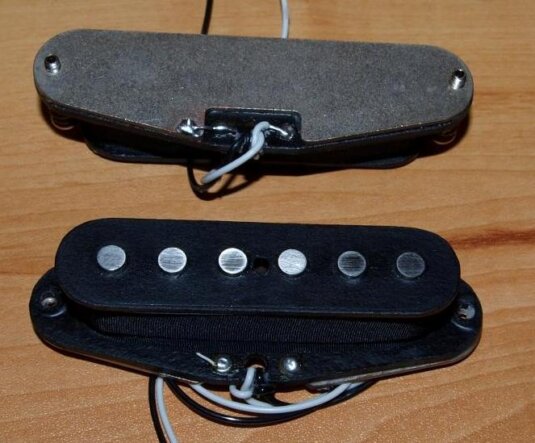

Stelley
A hybrid of S and T style pickups, essentially a specially wound
S style pickup with a steel base plate. Ideal for single coil guitars in
the bridge position for more cut and beef.

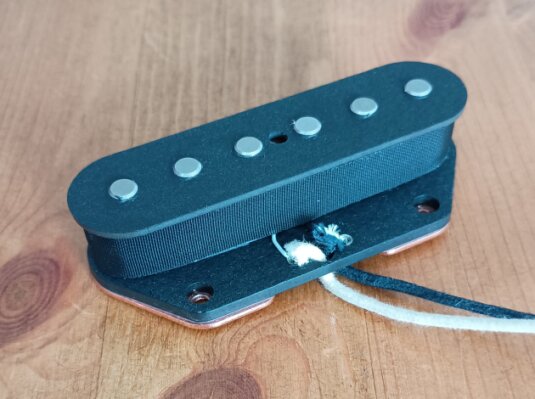

T style bridge pickups available with many winding variations, magnet choices
and can have a coil tap added for either a cut or boost to output.

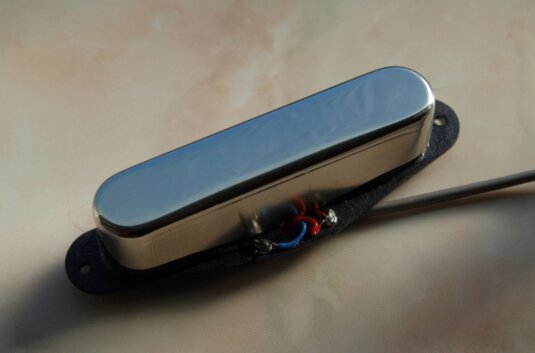

T style neck pickups. Pictured with a shielded two core cable to facilitate 4 way switching but
you can have them with plastic or cloth covered leads. There is less flexibility regarding winding
due to the small bobbin size than T style bridge pickups but they have all the usual pole magnet options.

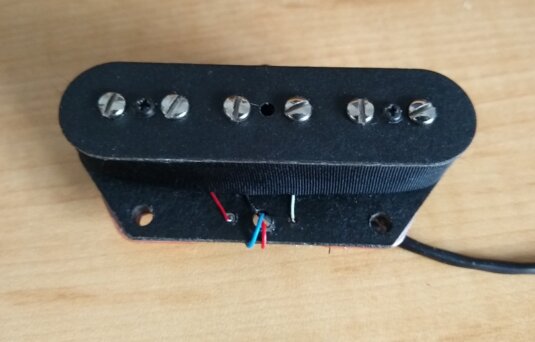

The TP90.
About as close as you will get to a true P90 tone in a T Bridge
pickup format. The TP90 has a pair of bar magnets under the coil and a split steel base plate
to spread the magnetic field to produce a P90 like response.
As standard, these are wound with 10,000 turns of 42AWG wire as per a true P90 but
other winding schemes are available and they can be fitted with a coil tap to produce a cut or
boost.

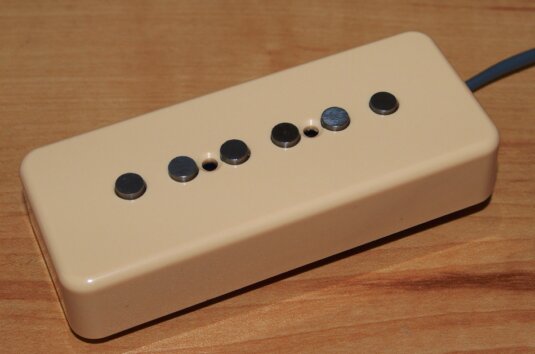

BP90
A variation upon a regular P90, same bobbin but with slug magnets instead of the
more usual twin bar magnets. This pickup has a clear, warm and articulate tone and can
wound in a variety of ways and fitted with various magnet poles to tweak things to taste.

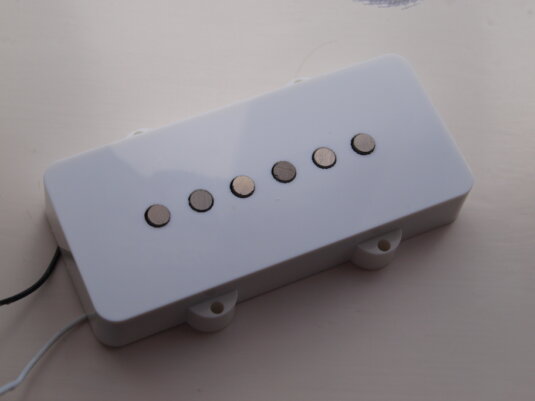

J-Master
These are pretty unique tonally and aside from "vintage" winding, there are
quite a few options regarding magnets and wire gauge/coil height.
